Applications and selection
Fastening assemblies with a specified DIN 6922 geometry or matching customer drawing.
Send the applicable standard edition and dimensional drawing. Compare head dimensions, flange form and bearing-face requirements with any proposed substitute.
Dimensions & technical reference
DIN 6922:1983
DIN 6922 has a reduced-diameter shank. Confirm its diameter on the agreed drawing. It is a distinct design from DIN 6921. The cited range ends at M20.
| Nominal size | P · coarse | dc max | k max | s max |
|---|---|---|---|---|
| M5 | 0.8 | 11.8 | 5.4 | 8 |
| M6 | 1 | 14.2 | 6.6 | 10 |
| M8 | 1.25 | 18 | 8.1 | 13 |
| M10 | 1.5 | 22.3 | 9.2 | 15 |
| M12 | 1.75 | 26.6 | 11.5 | 16 |
| M14 | 2 | 30.5 | 12.8 | 18 |
| M16 | 2 | 35 | 14.4 | 21 |
| M20 | 2.5 | 43 | 17.1 | 27 |
Dimensional source: 164580 · DIN 6922:1983 ↗. “—” means no value listed for this combination. P is thread pitch; min / max are dimensional limits. The selection above is not the full standard or a stock list.
Catalog inquiry range: M6 - M24. Availability, lengths, grades and finishes are confirmed by quotation. Sizes outside the cited reference table require the applicable standard dimensions or an approved drawing. Quote the exact standard and edition; DIN, ISO and U.S. references are not automatically interchangeable.
Materials, surface finishes and standards

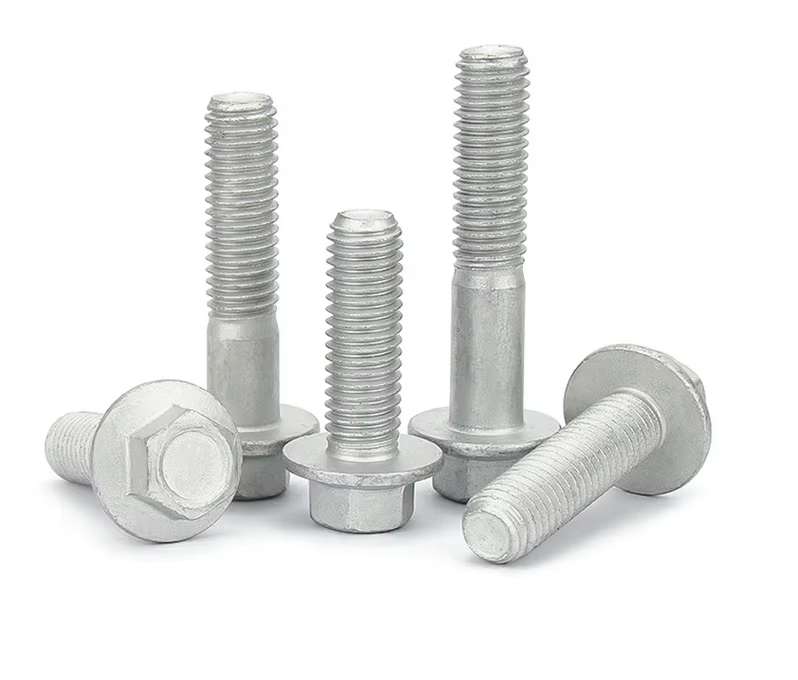

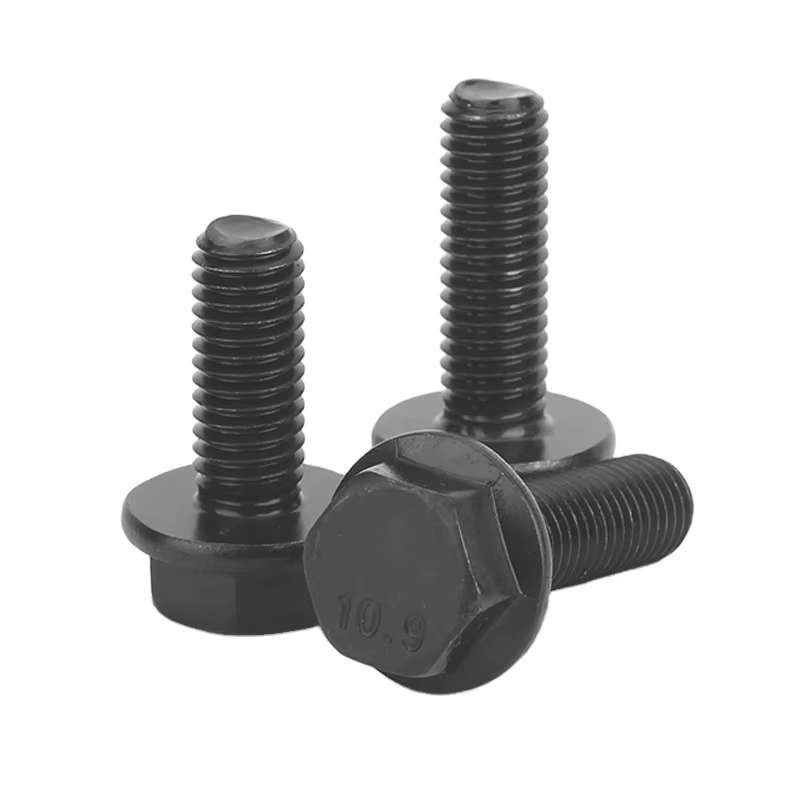

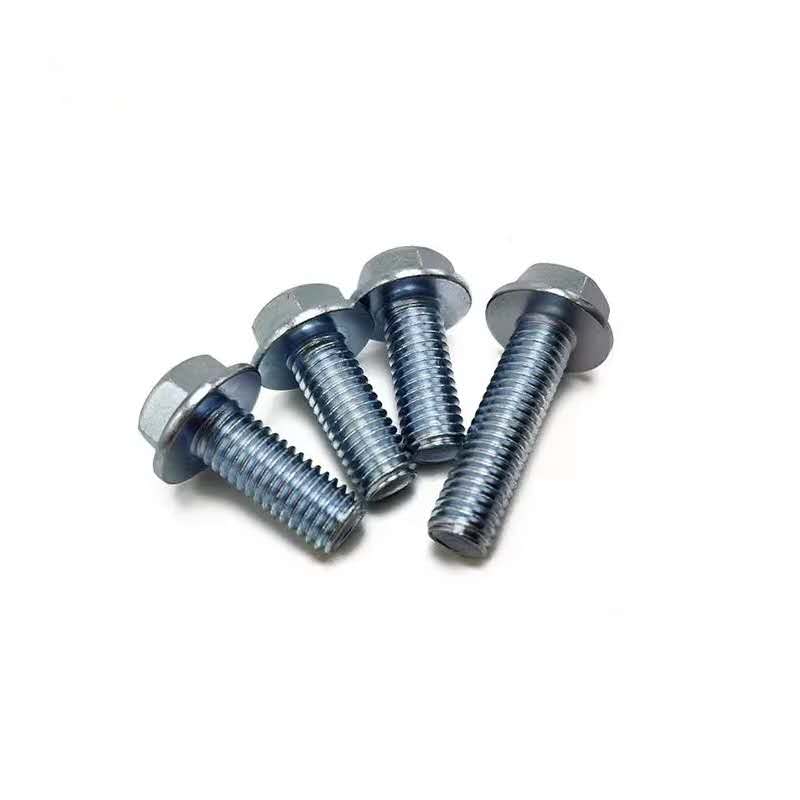

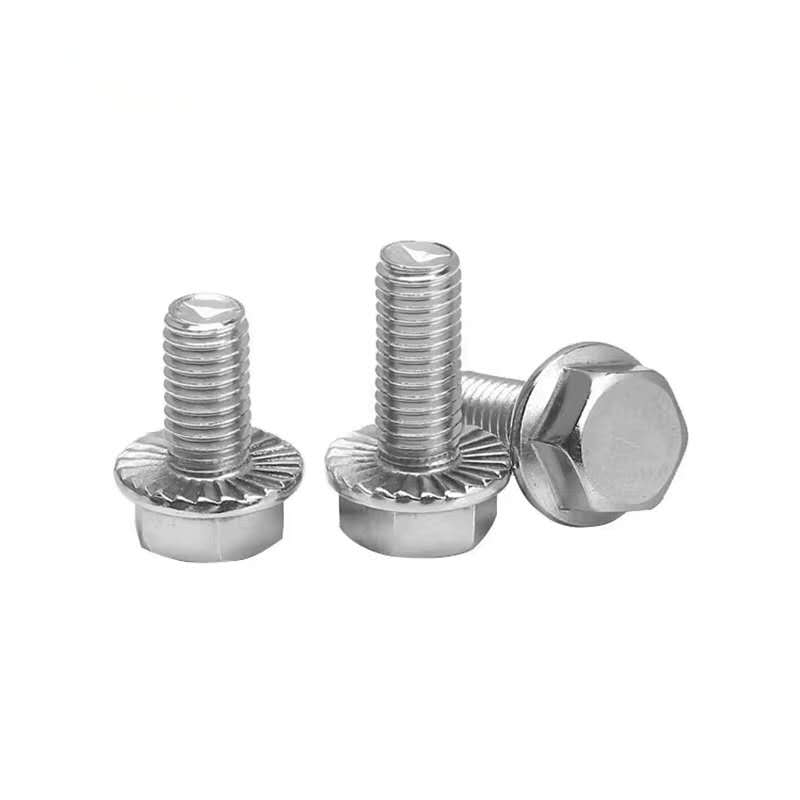

Materials for this series: Carbon Steel, Stainless Steel. Surface finishes: Black Oxide, Zinc Plated, HDG. Compatibility between the grade, finish and operating environment needs to be confirmed.
For titanium, nickel alloy or other non-ferrous requirements, include the exact material grade and drawing. Required mechanical properties, inspection documents and traceability should be stated in the inquiry.
Related U.S. references for hex flange screws. Confirm whether the specified DIN form and the U.S. reference differ in geometry. Standards from different systems can vary in dimensions, threads, product scope and test requirements. Confirm the exact designation and edition in the quotation.
Ordering standard
DIN 6922:1983
United States references for a separate inquiry: ASME B18.2.1 (inch); ASME B18.2.3.4M (metric). Confirm the exact form, thread system and drawing before quoting.
What to send for a quotation
- Hex flange bolts · DIN 6922 or your part number, with the relevant standard and edition.
- Exact dimensions, thread details, quantity and any critical tolerances.
- Material grade, surface finish, inspection requirements and delivery destination.
- For customization, a drawing revision and a description of the mating assembly.
Common questions about hex flange bolts · din 6922
Can I order a flange bolt by diameter and length alone?
Those dimensions are not sufficient to define every flange-bolt design. Include the standard, head geometry, bearing-face form, material class and finish.
Can I request a size or material outside this listing?
Yes. Send the required dimensions and exact material grade for review. A quotation is needed to confirm feasibility, price and lead time.
