Applications and selection
Pivoting or adjustable connections designed around an eye-ended fastener.
Include the eye bore, outside dimensions, shank length and thread details. Do not infer lifting capacity from the product name or photograph.
Dimensions & technical reference
DIN 444:2017
DIN 444 is an eye/swing bolt for linkages and pivoting clamps. Do not specify it as a DIN 580 lifting eyebolt. The eye and pin fit must be agreed.
| Nominal size | P | d2 min | d2 max | s max · grade A |
|---|---|---|---|---|
| M5 | 0.8 | 5 | 5.03 | 8 |
| M6 | 1 | 6 | 6.03 | 9 |
| M8 | 1.25 | 8 | 8.036 | 11 |
| M10 | 1.5 | 10 | 10.036 | 14 |
| M12 | 1.75 | 12 | 12.043 | 17 |
| M16 | 2 | 16 | 16.043 | 19 |
| M20 | 2.5 | 18 | 18.043 | 24 |
| M24 | 3 | 22 | 22.052 | 28 |
Dimensional source: 164580 · DIN 444:2017 ↗. “—” means no value listed for this combination. P is thread pitch; min / max are dimensional limits. The selection above is not the full standard or a stock list.
Catalog inquiry range: M6 - M30. Availability, lengths, grades and finishes are confirmed by quotation. Sizes outside the cited reference table require the applicable standard dimensions or an approved drawing. Quote the exact standard and edition; DIN, ISO and U.S. references are not automatically interchangeable.
Materials, surface finishes and standards

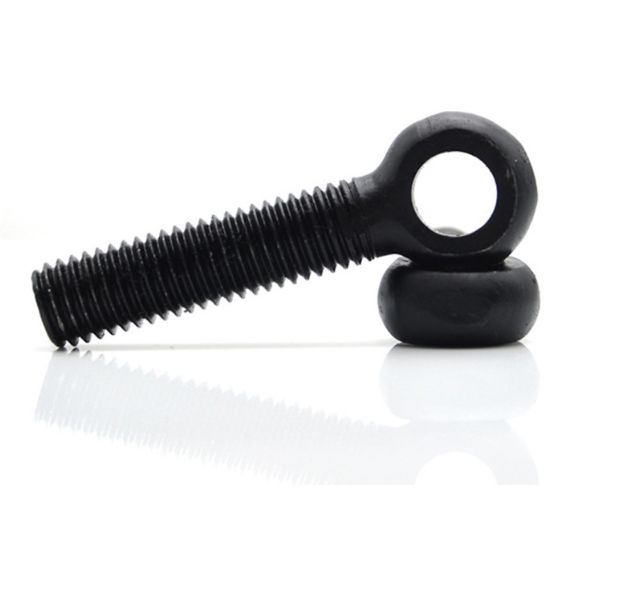

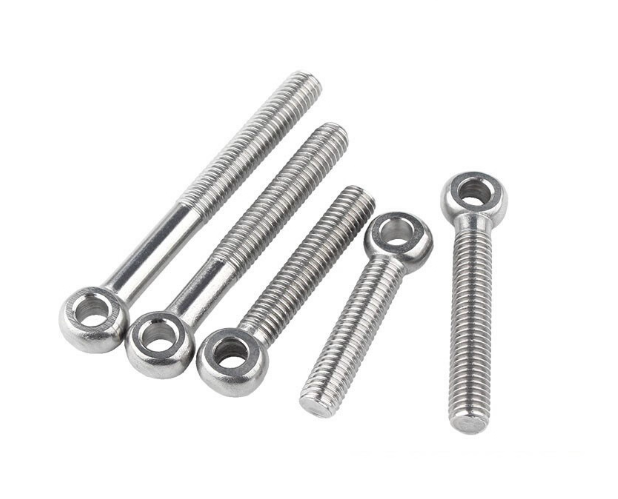

Materials for this series: Carbon Steel, Stainless Steel. Surface finishes: Black Oxide, Zinc Plated, HDG. Compatibility between the grade, finish and operating environment needs to be confirmed.
For titanium, nickel alloy or other non-ferrous requirements, include the exact material grade and drawing. Required mechanical properties, inspection documents and traceability should be stated in the inquiry.
DIN 444 swing eye bolts do not have a direct dimensional equivalent in this reference. Supply the eye, shank and thread dimensions on the drawing. Standards from different systems can vary in dimensions, threads, product scope and test requirements. Confirm the exact designation and edition in the quotation.
Ordering standard
DIN 444:2017
United States references for a separate inquiry: ASME B18.31.5 (related inch reference). Confirm the exact form, thread system and drawing before quoting.
What to send for a quotation
- Eye bolts · DIN 444 or your part number, with the relevant standard and edition.
- Exact dimensions, thread details, quantity and any critical tolerances.
- Material grade, surface finish, inspection requirements and delivery destination.
- For customization, a drawing revision and a description of the mating assembly.
Common questions about eye bolts · din 444
Is a DIN 444 eye bolt a rated lifting eye?
A catalog eye bolt is not automatically a rated lifting accessory. If lifting is required, specify a qualified lifting product and its applicable load rating separately.
Can I request a size or material outside this listing?
Yes. Send the required dimensions and exact material grade for review. A quotation is needed to confirm feasibility, price and lead time.
