Dimensions & technical reference
DIN 315:2016
Dimensions shown are for the round-wing form in the cited reference. Wing shape and manufacturing route should be confirmed for replacement parts.

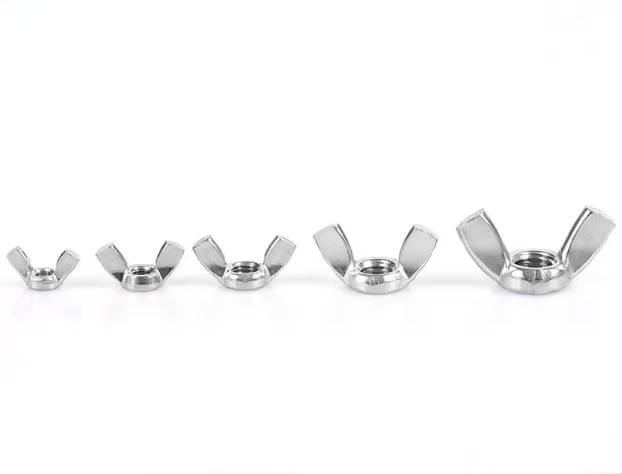

| Nominal size | P · coarse | L max · wingspan | k max | m max |
|---|---|---|---|---|
| M4 | 0.7 | 20 | 10.5 | 4.6 |
| M5 | 0.8 | 26 | 13 | 6.5 |
| M6 | 1 | 33 | 17 | 8 |
| M8 | 1.25 | 39 | 20 | 10 |
| M10 | 1.5 | 51 | 25 | 12 |
| M12 | 1.75 | 65 | 33.5 | 14 |
| M16 | 2 | 73 | 37.5 | 17 |
| M20 | 2.5 | 90 | 46.5 | 21 |
| M24 | 3 | 110 | 56.5 | 25 |
Dimensional source: 164580 · DIN 315:2016 ↗. “—” means no value listed for this combination. P is thread pitch; min / max are dimensional limits. The selection above is not the full standard or a stock list.
Catalog inquiry range: M4 - M20. Availability, lengths, grades and finishes are confirmed by quotation. Sizes outside the cited reference table require the applicable standard dimensions or an approved drawing. Quote the exact standard and edition; DIN, ISO and U.S. references are not automatically interchangeable.
Applications and selection
Assemblies designed for hand adjustment or access without a conventional wrench.
Specify the thread, wing span, height and material. Hand operation should not be treated as a defined tightening torque.
Materials, surface finishes and standards

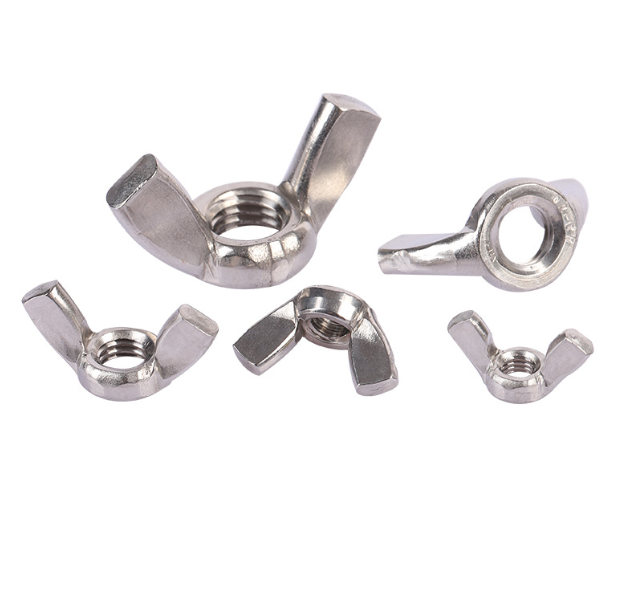

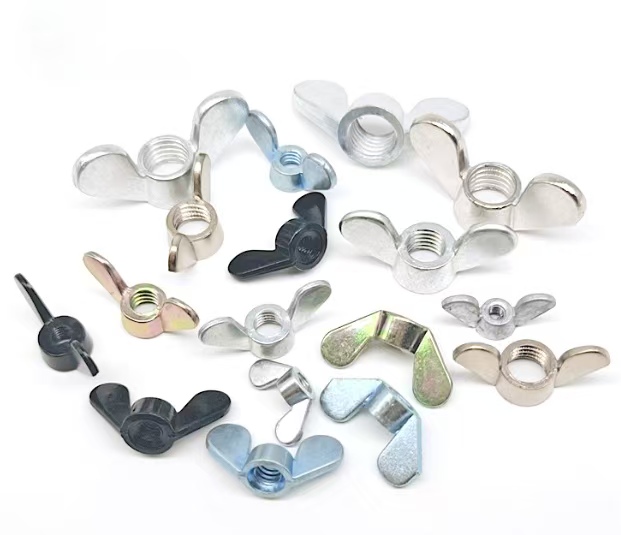

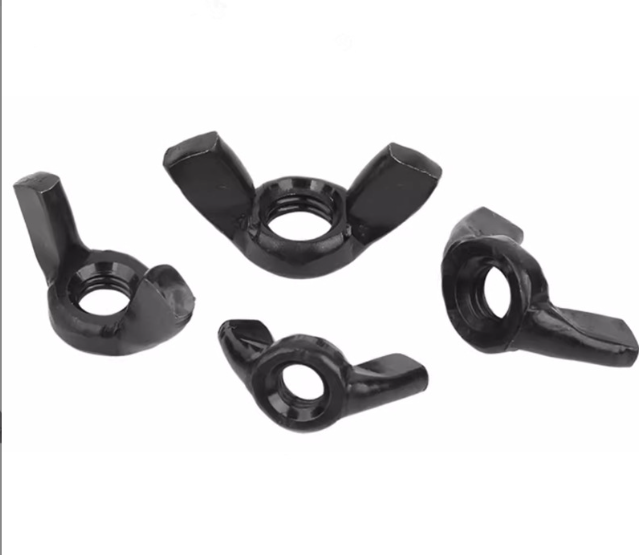

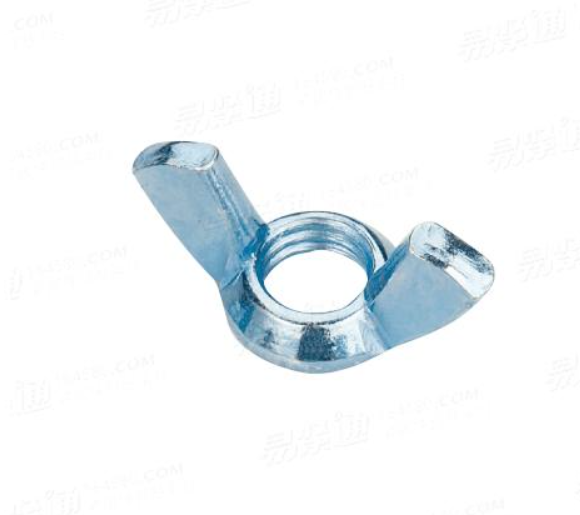

Materials for this series: Carbon Steel, Stainless Steel. Surface finishes: Black Oxide, Zinc Plated, Stainless. Compatibility between the grade, finish and operating environment needs to be confirmed.
For titanium, nickel alloy or other non-ferrous requirements, include the exact material grade and drawing. Required mechanical properties, inspection documents and traceability should be stated in the inquiry.
Related U.S. dimensional reference for wing nuts. Confirm wing style, body dimensions and manufacturing method. Standards from different systems can vary in dimensions, threads, product scope and test requirements. Confirm the exact designation and edition in the quotation.
Ordering standard
DIN 315:2016
United States references for a separate inquiry: ASME B18.6.9 (inch). Confirm the exact form, thread system and drawing before quoting.
What to send for a quotation
Start with the size and quantity you need. Include the following details where available; remaining requirements can be confirmed by email.
- Thread & mating part
- Give the nominal diameter, pitch, thread system and mating bolt or rod specification.
- Nut form
- Specify the exact series, standard and edition, or attach a dimensioned drawing.
- Material & finish
- State the required grade or property class and finish. Listed options are reviewed for the requested size.
- Quantity & destination
- Give the quantity for each specification and the delivery destination.
Confirmed per order: MOQ, sample arrangements, lead time, supply combinations and inspection documents. A requested delivery date is reviewed during quotation.
Request a quotation →Common questions about wing nuts
Can I specify a precise tightening torque by choosing a wing nut?
The wing shape supports hand operation but does not establish a controlled torque. Follow the tightening method required by the assembly design.
Can I request a size or material outside this listing?
Yes. Send the required dimensions and exact material grade for review. A quotation is needed to confirm feasibility, price and lead time.
