Dimensions & technical reference
DIN 982:1987

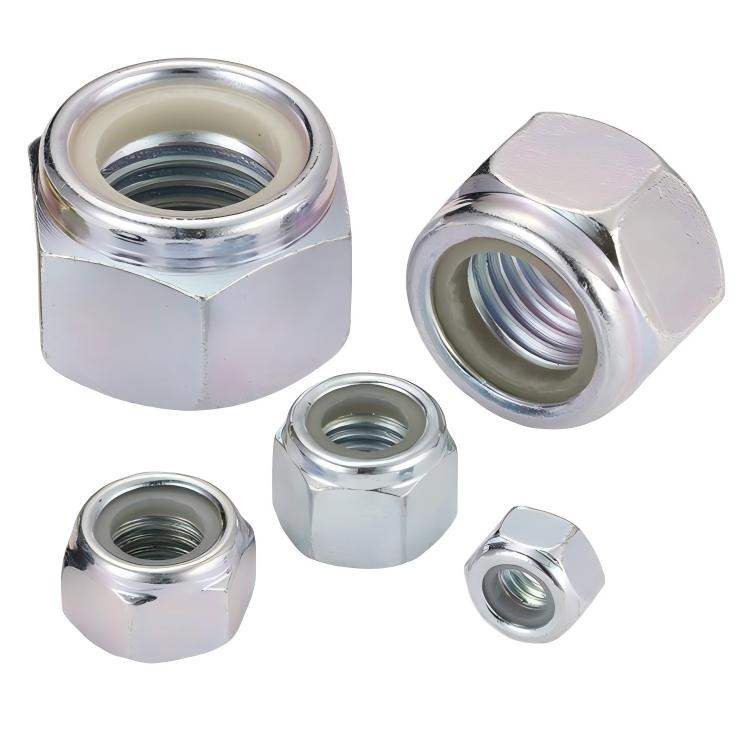

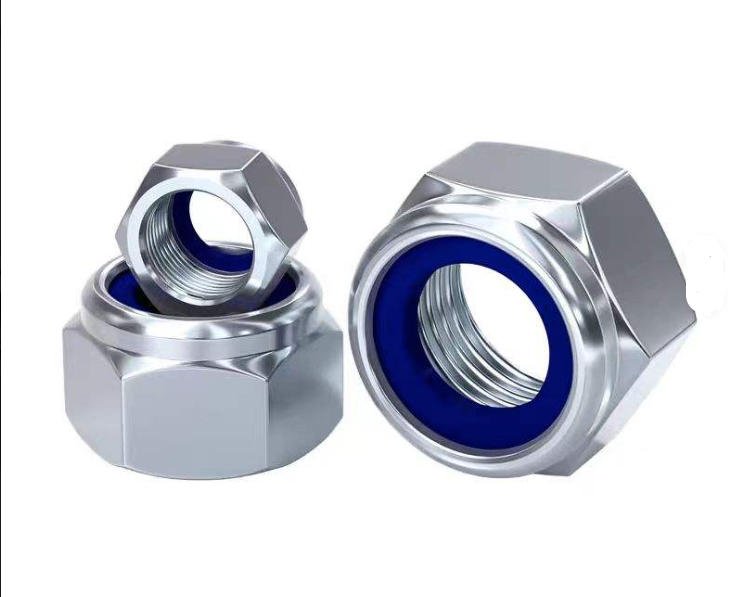

High-pattern nut with a non-metallic insert. The cited table ends at M24; larger inquiries require an agreed drawing. Confirm insert temperature and chemical compatibility.
| Nominal size | P · coarse | s max | h max | m min |
|---|---|---|---|---|
| M5 | 0.8 | 8 | 6.3 | 4.4 |
| M6 | 1 | 10 | 8 | 4.9 |
| M7 | 1 | 11 | 8.5 | 6.14 |
| M8 | 1.25 | 13 | 9.5 | 6.44 |
| M10 | 1.5 | 17 | 11.5 | 8.04 |
| M12 | 1.75 | 19 | 14 | 10.37 |
| M14 | 2 | 22 | 16 | 12.1 |
| M16 | 2 | 24 | 18 | 14.1 |
| M18 | 2.5 | 27 | 20 | 15.1 |
| M20 | 2.5 | 30 | 22 | 16.9 |
| M22 | 2.5 | 32 | 25 | 18.1 |
| M24 | 3 | 36 | 28 | 20.2 |
Dimensional source: 164580 · DIN 982:1987 ↗. “—” means no value listed for this combination. P is thread pitch; min / max are dimensional limits. The selection above is not the full standard or a stock list.
Catalog inquiry range: M8 - M48. Availability, lengths, grades and finishes are confirmed by quotation. Sizes outside the cited reference table require the applicable standard dimensions or an approved drawing. Quote the exact standard and edition; DIN, ISO and U.S. references are not automatically interchangeable.
Applications and selection
Assemblies that specify a higher-body nylon-insert nut.
Provide the nut height, thread, property requirements and operating conditions. The insert material and its suitability must be confirmed for the application.
Materials, surface finishes and standards
Materials for this series: Carbon Steel, Stainless Steel. Surface finishes: Zinc Plated, Plain. Compatibility between the grade, finish and operating environment needs to be confirmed.
For titanium, nickel alloy or other non-ferrous requirements, include the exact material grade and drawing. Required mechanical properties, inspection documents and traceability should be stated in the inquiry.
Related U.S. references for prevailing-torque locknuts. Confirm insert material, nut height and service temperature. Standards from different systems can vary in dimensions, threads, product scope and test requirements. Confirm the exact designation and edition in the quotation.
Ordering standard
DIN 982:1987
United States references for a separate inquiry: ASME B18.16.6 (inch); ASME B18.16.7M (metric). Confirm the exact form, thread system and drawing before quoting.
What to send for a quotation
Start with the size and quantity you need. Include the following details where available; remaining requirements can be confirmed by email.
- Thread & mating part
- Give the nominal diameter, pitch, thread system and mating bolt or rod specification.
- Nut form
- Specify the exact series, standard and edition, or attach a dimensioned drawing.
- Material & finish
- State the required grade or property class and finish. Listed options are reviewed for the requested size.
- Quantity & destination
- Give the quantity for each specification and the delivery destination.
Confirmed per order: MOQ, sample arrangements, lead time, supply combinations and inspection documents. A requested delivery date is reviewed during quotation.
Request a quotation →Common questions about nylon lock thick nuts
Why specify a thick rather than a thin nylon-insert nut?
The higher-body geometry may be required by the drawing or mechanical specification. Check the actual engagement, dimensions and clearance rather than selecting by appearance.
Can I request a size or material outside this listing?
Yes. Send the required dimensions and exact material grade for review. A quotation is needed to confirm feasibility, price and lead time.
