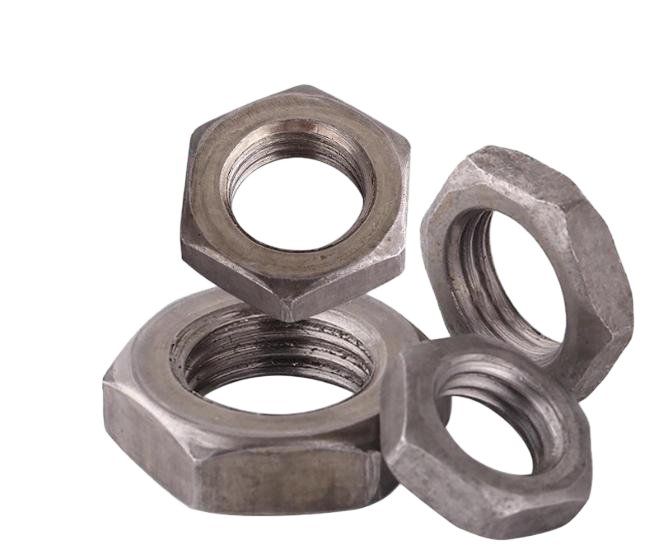

Dimensions & technical reference
DIN 936:1985
The cited DIN 936 table starts at M8. Catalog M5–M6 inquiries require an agreed drawing or a different explicitly named thin-nut standard.
| Nominal size | P · coarse | s max | m max | m min |
|---|---|---|---|---|
| M8 | 1.25 | 13 | 5 | 4.7 |
| M10 | 1.5 | 17 | 6 | 5.7 |
| M12 | 1.75 | 19 | 7 | 6.64 |
| M14 | 2 | 22 | 8 | 7.42 |
| M16 | 2 | 24 | 8 | 7.42 |
| M18 | 2.5 | 27 | 9 | 8.42 |
| M20 | 2.5 | 30 | 9 | 8.1 |
| M22 | 2.5 | 32 | 10 | 9.1 |
| M24 | 3 | 36 | 10 | 9.1 |
| M27 | 3 | 41 | 12 | 10.9 |
| M30 | 3.5 | 46 | 12 | 10.9 |
| M33 | 3.5 | 50 | 14 | 12.9 |
| M36 | 4 | 55 | 14 | 12.9 |
Dimensional source: 164580 · DIN 936:1985 ↗. “—” means no value listed for this combination. P is thread pitch; min / max are dimensional limits. The selection above is not the full standard or a stock list.
Catalog inquiry range: M5 - M30. Availability, lengths, grades and finishes are confirmed by quotation. Sizes outside the cited reference table require the applicable standard dimensions or an approved drawing. Quote the exact standard and edition; DIN, ISO and U.S. references are not automatically interchangeable.
Applications and selection
Defined low-profile assemblies or nut arrangements that specify a thin component.
Provide nut height, thread details and required mechanical properties. Reduced height changes the available thread engagement.
Materials, surface finishes and standards
Materials for this series: Carbon Steel, Stainless Steel. Surface finishes: Plain Black, Zinc Plated, HDG. Compatibility between the grade, finish and operating environment needs to be confirmed.
For titanium, nickel alloy or other non-ferrous requirements, include the exact material grade and drawing. Required mechanical properties, inspection documents and traceability should be stated in the inquiry.
Related U.S. references for jam or thin hex nuts. Confirm nut height and thread engagement. Standards from different systems can vary in dimensions, threads, product scope and test requirements. Confirm the exact designation and edition in the quotation.
Ordering standard
DIN 936:1985
United States references for a separate inquiry: ASME B18.2.2 (inch); ASME B18.2.4.5M (metric). Confirm the exact form, thread system and drawing before quoting.
What to send for a quotation
Start with the size and quantity you need. Include the following details where available; remaining requirements can be confirmed by email.
- Thread & mating part
- Give the nominal diameter, pitch, thread system and mating bolt or rod specification.
- Nut form
- Specify the exact series, standard and edition, or attach a dimensioned drawing.
- Material & finish
- State the required grade or property class and finish. Listed options are reviewed for the requested size.
- Quantity & destination
- Give the quantity for each specification and the delivery destination.
Confirmed per order: MOQ, sample arrangements, lead time, supply combinations and inspection documents. A requested delivery date is reviewed during quotation.
Request a quotation →Common questions about hex thin nuts
Does the same thread size make a thin nut equivalent to a full nut?
No. Height, thread engagement and mechanical requirements differ and must be checked against the design.
Can I request a size or material outside this listing?
Yes. Send the required dimensions and exact material grade for review. A quotation is needed to confirm feasibility, price and lead time.
